Abstract

Abstract

Semantic Segmentation methods play a key role in today’s Autonomous Driving research, since they provide a global understanding of the traffic scene for upper-level tasks like navigation. However, main research efforts are being put on enlarging deep architectures to achieve marginal accuracy boosts in existing datasets, forgetting that these algorithms must be deployed in a real vehicle with images that were not seen during training. On the other hand, achieving robustness in any domain is not an easy task, since deep networks are prone to overfitting even with thousands of training images. In this paper, we study in a systematic way what is the gap between the concepts of “accuracy” and “robustness”. A comprehensive set of experiments demonstrates the relevance of using data augmentation to yield models that can produce robust semantic segmentation outputs in any domain. Our results suggest that the existing domain gap can be significantly reduced when appropriate augmentation techniques regarding geometry (position and shape) and texture (color and illumination) are applied. In addition, the proposed training process results in better calibrated models, which is of special relevance to assess the robustness of current systems.

Abstract

Semantic segmentation based on Convolutional Neural Networks (CNNs) has been proven as an efficient way of facing scene understanding for autonomous driving applications. Traditionally, environment information is acquired using narrow-angle pin-hole cameras, but autonomous vehicles need wider field of view to perceive the complex surrounding, especially in urban traffic scenes. Fisheye cameras have begun to play an increasingly role to cover this need. This paper presents a real-time CNN-based semantic segmentation solution for urban traffic images using fisheye cameras. We adapt our Efficient Residual Factorized CNN (ERFNet) architecture to handle distorted fish-eye images. A new fisheye image dataset for semantic segmentation from the existing CityScapes dataset is generated to train and evaluate our CNN. We also test a data augmentation suggestion for fisheye image proposed in [1]. Experiments show outstanding results of our proposal regarding other methods of the state of the art.

Abstract

Active research on computer vision accelerates the progress in autonomous driving. Following this trend, we aim to leverage the recently emerged methods for Intelligent Vehicles (IV), and transfer them to develop navigation assistive technologies for the Visually Impaired (VI). This topic grows notoriously challenging as it requires to detect a variety of scenes towards higher level of assistance. Computer vision based techniques with monocular detectors or depth sensors sprung up within years of research. These separate approaches achieved remarkable results with relatively low processing time, and improved the mobility of visually impaired people to a large extent. However, running all detectors jointly increases the latency and burdens the computational resources. In this paper, we put forward to seize pixel-wise semantic segmentation to cover the perception needs of navigational assistance in a unified way. This is critical not only for the terrain awareness regarding traversable areas, sidewalks, stairs and water hazards, but also for the avoidance of short-range obstacles, fast-approaching pedestrians and vehicles. At the heart of our proposal is a combination of efficient residual factorized network (ERFNet), pyramid scene parsing network (PSPNet) and 3D point cloud based segmentation. This approach proves to be with qualified accuracy and speed for real-world applications by a comprehensive set of experiments on a wearable navigation system.

Abstract

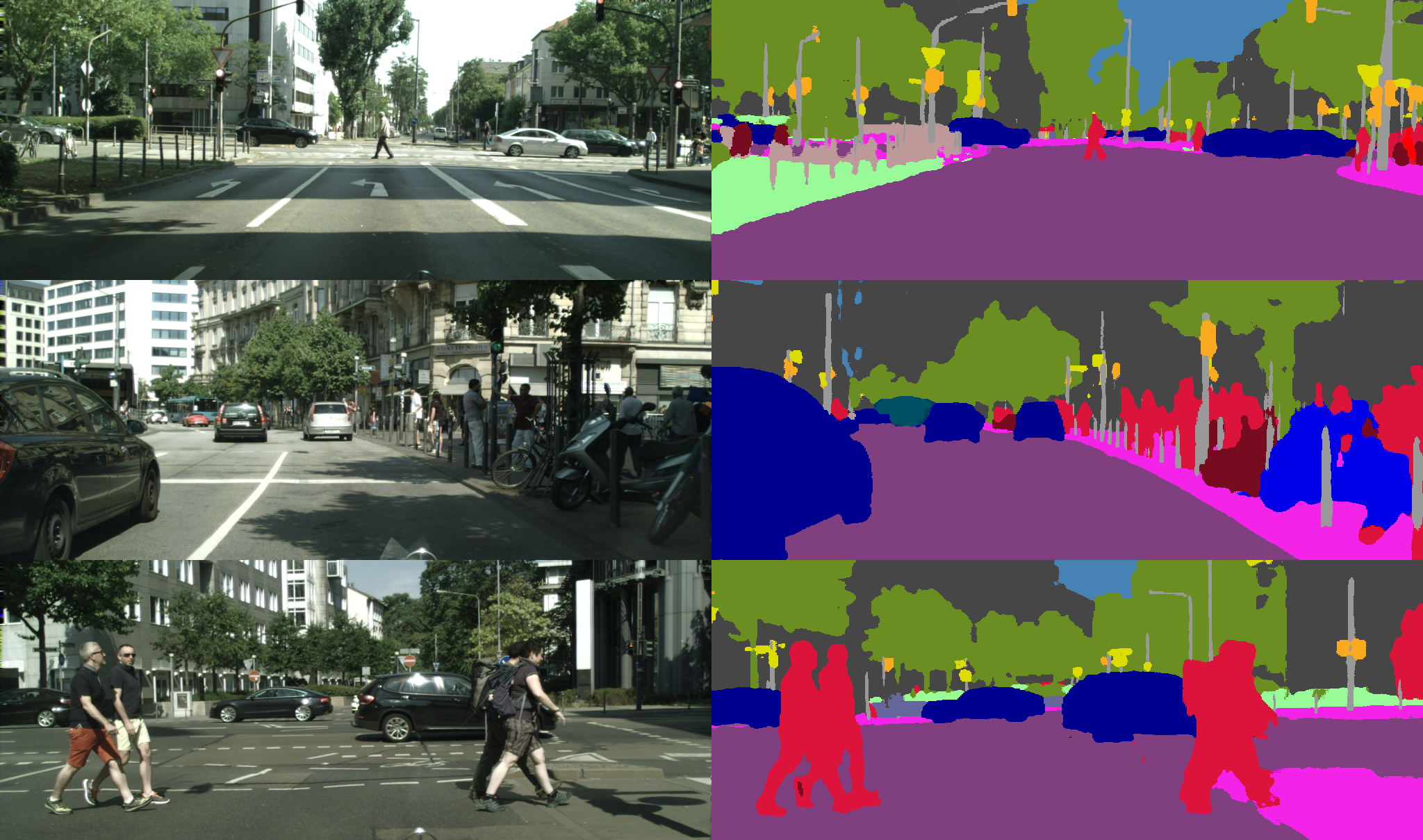

Semantic segmentation is a task that covers most of the perception needs of intelligent vehicles in an unified way. ConvNets excel at this task, as they can be trained end-to-end to accurately classify multiple object categories in an image at the pixel level. However, current approaches normally involve complex architectures that are expensive in terms of computational resources and are not feasible for ITS applications. In this paper, we propose a deep architecture that is able to run in real-time while providing accurate semantic segmentation. The core of our ConvNet is a novel layer that uses residual connections and factorized convolutions in order to remain highly efficient while still retaining remarkable performance. Our network is able to run at 83 FPS in a single Titan X, and at more than 7 FPS in a Jetson TX1 (embedded GPU). A comprehensive set of experiments demonstrates that our system, trained from scratch on the challenging Cityscapes dataset, achieves a classification performance that is among the state of the art, while being orders of magnitude faster to compute than other architectures that achieve top precision. This makes our model an ideal approach for scene understanding in intelligent vehicles applications.

Abstract

The extreme variability in the appearance of a place across the four seasons of the year is one of the most challenging problems in life-long visual topological localization for mobile robotic systems and intelligent vehicles. Traditional solutions are typically based on the description of images using manually hand-crafted features, which have demonstrated not to be completely reliable against these seasonal changes. In this paper, we present a new proposal focused on robust automatically learned features, which are processed by means of a revolutionary concept recently popularized in the computer vision community: Convolutional Neural Networks (CNNs). Commonly, deep learning involves a high consumption of resources and computational costs. Due to this, we contribute our CNN-VTL architecture adapted to the conditions of our place recognition system, with the aim of optimizing the efficiency maintaining the effectiveness. The final CNN features are also reduced as possible using compression techniques and binarized for a fast matching based on the Hamming distance. A wide set of results is discussed, confirming the outstanding performance of our method against the main state-of-the-art algorithms and over varied long-term datasets recorded across seasons.

Abstract

Driving analysis is a recent topic of interest due to the growing safety concerns in vehicles. However, the lack of publicly available driving data currently limits the progress on this field. Machine learning techniques could highly enhance research, but they rely on large amounts of data which are difficult and very costly to obtain through Naturalistic Driving Studies (NDSs), resulting in limited accessibility to the general research community. Additionally, the proliferation of smartphones has provided a cheap and easy-to-deploy platform for driver behavior sensing, but existing applications do not provide open access to their data. For these reasons, this paper presents the UAH-DriveSet, a public dataset that allows deep driving analysis by providing a large amount of data captured by our driving monitoring app DriveSafe. The application is run by 6 different drivers and vehicles, performing 3 different behaviors (normal, drowsy and aggressive) on two types of roads (motorway and secondary road), resulting in more than 500 minutes of naturalistic driving with its associated raw data and processed semantic information, together with the video recordings of the trips. This work also introduces a tool that helps to plot the data and display the trip videos simultaneously, in order to ease data analytics. The UAH-DriveSet is available at: http://www.robesafe.com/personal/eduardo.romera/uah-driveset

Abstract

Life-long visual localization is one of the most challenging topics in robotics over the last few years. The difficulty of this task is in the strong appearance changes that a place suffers due to dynamic elements, illumination, weather or seasons. In this paper, we propose a novel method (ABLE-M) to cope with the main problems of carrying out a robust visual topological localization along time. The novelty of our approach resides in the description of sequences of monocular images as binary codes, which are extracted from a global LDB descriptor and efficiently matched using FLANN for fast nearest neighbor search. Besides, an illumination invariant technique is applied. The usage of the proposed binary description and matching method provides a reduction of memory and computational costs, which is necessary for long-term performance. Our proposal is evaluated in different life-long navigation scenarios, where ABLE-M outperforms some of the main state-of-the-art algorithms, such as WI-SURF, BRIEF-Gist, FAB-MAP or SeqSLAM. Tests are presented for four public datasets where a same route is traversed at different times of day or night, along the months or across all four seasons.

Abstract

In the last years there has been a rising interest in monitoring driver behaviors by using smartphones, due to their increasing market penetration. Inertial sensors embedded in these devices are key to carry out this task. Most of the state-of-the-art apps use fix thresholds to detect driving events from the inertial sensors. However, sensors output values can differ depending on many parameters. In this paper we present an Adaptive Fuzzy Classifier to identify sudden driving events (acceleration, steering, braking) and road bumps from the inertial and GPS sensors. An on-line calibration method is proposed to adjust the decision thresholds of the Membership Functions (MFs) to the specific phone pose and vehicle dynamics. To validate our method, we use the UAH-Driveset database, which includes more than 500 minutes of naturalistic driving, and we compare results with our previous DriveSafe app version, based on fix thresholds. Results show a notable improvement in the events detection regarding our previous version.

Abstract

Autonomous driving is a challenging topic that requires complex solutions in perception tasks such as recognition of road, lanes, traffic signs or lights, vehicles and pedestrians. Through years of research, computer vision has grown capable of tackling these tasks with monocular detectors that can provide remarkable detection rates with relatively low processing times. However, the recent appearance of Convolutional Neural Networks (CNNs) has revolutionized the computer vision field and has made possible approaches to perform full pixel-wise semantic segmentation in times close to real time (even on hardware that can be carried on a vehicle). In this paper, we propose to use full image segmentation as an approach to simplify and unify most of the detection tasks required in the perception module of an autonomous vehicle, analyzing major concerns such as computation time and detection performance.

Abstract

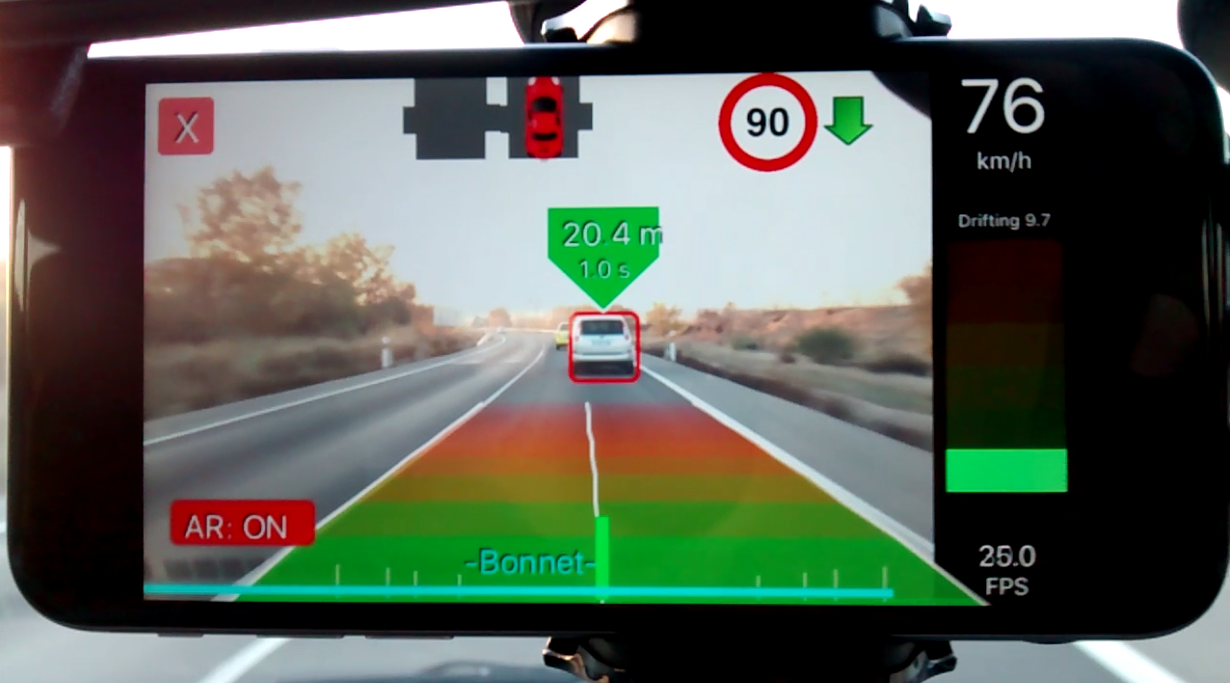

Automated vehicle detection is a research field in constant evolution due to the new technological advances and security requirements demanded by the current intelligent transportation systems. For these reasons, in this paper we present a vision-based vehicle detection and tracking pipeline, which is able to run on an iPhone in real time. An approach based on smartphone cameras supposes a versatile solution and an alternative to other expensive and complex sensors on the vehicle, such as LiDAR or other range-based methods. A multi-scale proposal and simple geometry consideration of the roads based on the vanishing point are combined to overcome the computational constraints. Our algorithm is tested on a publicly available road dataset, thus demonstrating its real applicability to ADAS or autonomous driving.

Abstract

Life-long visual localization is one of the most challenging topics in robotics over the last few years. The difficulty of this task is in the strong appearance changes that a place suffers due to dynamic elements, illumination, weather or seasons. In this paper, we propose a novel method (ABLE-M) to cope with the main problems of carrying out a robust visual topological localization along time. The novelty of our approach resides in the description of sequences of monocular images as binary codes, which are extracted from a global LDB descriptor and efficiently matched using FLANN for fast nearest neighbor search. Besides, an illumination invariant technique is applied. The usage of the proposed binary description and matching method provides a reduction of memory and computational costs, which is necessary for long-term performance. Our proposal is evaluated in different life-long navigation scenarios, where ABLE-M outperforms some of the main state-of-the-art algorithms, such as WI-SURF, BRIEF-Gist, FAB-MAP or SeqSLAM. Tests are presented for four public datasets where a same route is traversed at different times of day or night, along the months or across all four seasons.
